PIECES CONSTITUTIVES

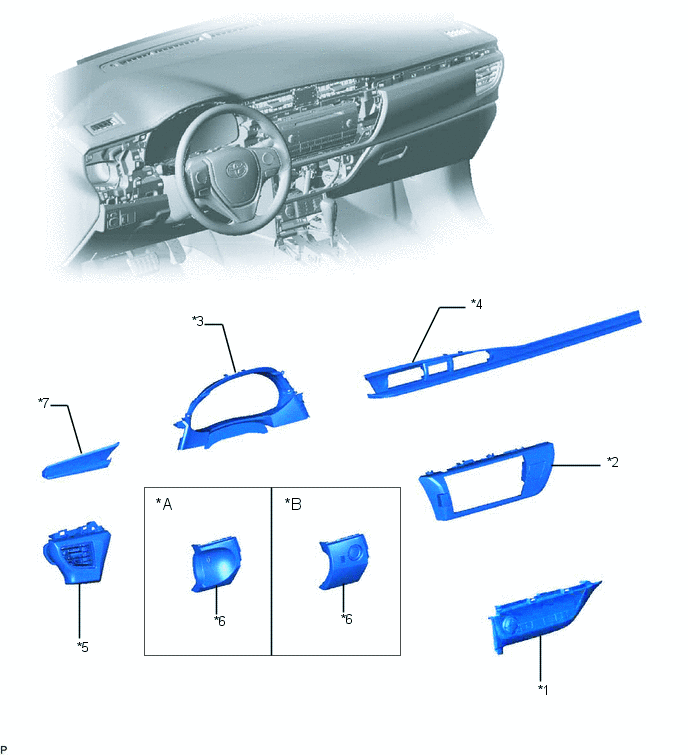

SCHEMA
*A | sans système de clé intelligente |
*B | avec système de clé intelligente |
*1 | ENSEMBLE DE COMMANDE DE CLIMATISATION |
*2 | SOUS-ENSEMBLE DE PANNEAU DE FINITION CENTRAL DE COMBINE D'INSTRUMENTS |
*3 | ENSEMBLE DE PANNEAU DE FINITION DE COMBINE D'INSTRUMENTS |
*4 | SOUS-ENSEMBLE DE GARNISSAGE DE TABLEAU DE BORD N° 1 |
*5 | ENSEMBLE DE REGISTRE DE TABLEAU DE BORD N° 1 |
*6 | BASE D'ORIFICE DE CONTACTEUR N° 1 |
*7 | SOUS-ENSEMBLE DE GARNISSAGE DE TABLEAU DE BORD N° 2 |
- | - |
Depose
DEPOSE PROCEDURE 1. MESURES DE PRECAUTION (avec système de clé intelligente) REMARQUE: Après avoir mis le contacteur d'allumage en position OFF, un délai d'attente avant de débrancher le cà ...
D'autres materiaux:
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 PROTECTION DE LEVIER DE FREIN DE STATIONNEMENT
*2 ENSEMBLE DE CABLE DE FREIN DE STATIONNEMENT N° 3
N*m (kgf*cm, lbf*pi): couple de serrage prescrit
- - SCHEMA
*1 ENSEMBLE DE CYLINDRE DE FREIN A DISQUE ARRIERE ...
Remontage
REMONTAGE PROCEDURE 1. REPOSER LA VITRE DU COMBINE D'INSTRUMENTS (pour standard)
(a) Engager les 8 griffes pour reposer la vitre du combiné d'instruments.
2. REPOSER LA VITRE DU COMBINE D'INSTRUMENTS (pour équipement sport)
(a) Engager les 8 griffes pour reposer la ...
Enregistrement
ENREGISTREMENT MESURE DE PRECAUTION / REMARQUE / CONSEIL
REMARQUE: Le numéro d'identification du véhicule (VIN) doit être introduit dans l'ECM de remplacement.
CONSEIL: Le
VIN est un numéro d'identification du véhicule comportant 17 caractères
alphanumériques. Le Techstream est néces ...
