PIECES CONSTITUTIVES

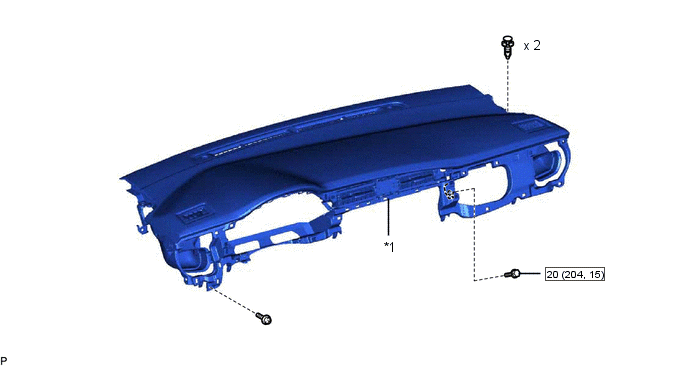

SCHEMA
*1 | ENSEMBLE SUPERIEUR DE TABLEAU DE BORD |
- | - |
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- | - |

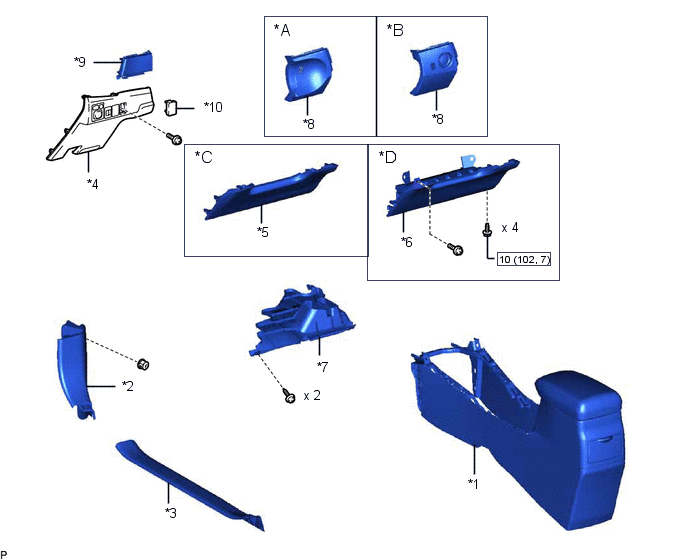

SCHEMA
*A | sans système de clé intelligente |
*B | avec système de clé intelligente |
*C | sans airbag genoux |
*D | avec airbag genoux |
*1 | ENSEMBLE DE BOITIER DE CONSOLE |
*2 | PANNEAU LATERAL D'HABILLAGE D'AUVENT GAUCHE |
*3 | PLAQUE DE SEUIL DE PORTE AVANT GAUCHE |
*4 | CACHE D'OUVERTURE DE BOITE A FUSIBLES |
*5 | SOUS-ENSEMBLE INFERIEUR DE PANNEAU DE FINITION DE TABLEAU DE BORD |
*6 | ENSEMBLE D'AIRBAG DE TABLEAU DE BORD INFERIEUR N° 1 |
*7 | SOUS-ENSEMBLE DE CACHE INFERIEUR DE TABLEAU DE BORD N° 1 |
*8 | BASE D'ORIFICE DE CONTACTEUR N° 1 |
*9 | BASE D'ORIFICE DE CONTACTEUR N° 2 |
*10 | COUVERCLE |
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- | - |

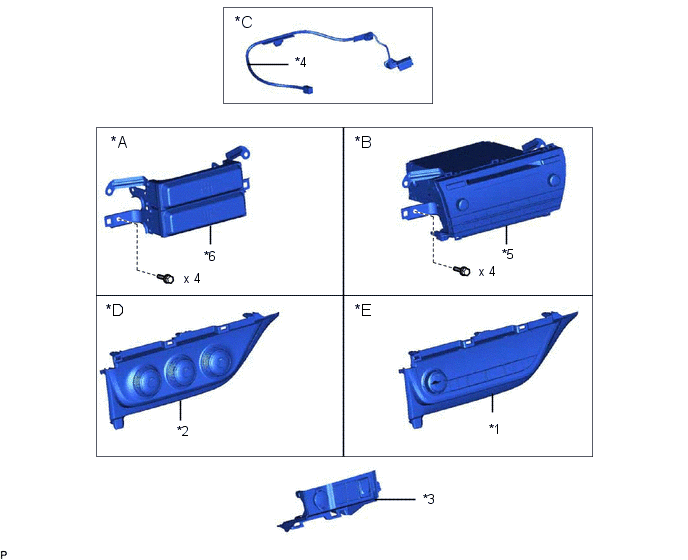

SCHEMA
*A | sans récepteur de radio |
*B | avec récepteur de radio |
*C | avec système de navigation |
*D | pour système de climatisation manuelle |
*E | pour système de climatisation automatique |
- | - |
*1 | ENSEMBLE DE COMMANDE DE CLIMATISATION |
*2 | ENSEMBLE DE PANNEAU DE CLIMATISATION |
*3 | PANNEAU DE FINITION INFERIEUR CENTRAL DE TABLEAU DE BORD |
*4 | SOUS-ENSEMBLE DE CABLE D'ANTENNE DE NAVIGATION N° 1 |
*5 | ENSEMBLE DE RECEPTEUR DE RADIO AVEC SUPPORT |
*6 | CACHE D'OUVERTURE D'INSTALLATION STEREO AVEC SUPPORT |

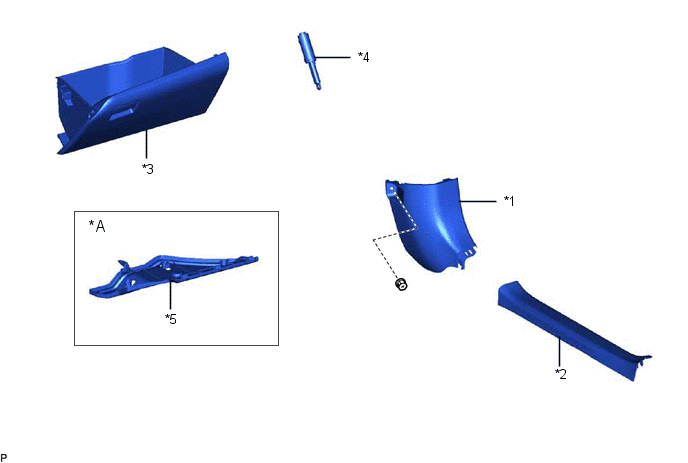

SCHEMA
*A | Avec cache inférieur de tableau de bord |
- | - |
*1 | PANNEAU LATERAL D'HABILLAGE D'AUVENT DROIT |
*2 | PLAQUE DE SEUIL DE PORTE AVANT DROITE |
*3 | ENSEMBLE DE PORTE DE BOITE A GANTS |
*4 | SOUS-ENSEMBLE DE BUTEE DE PORTE DE BOITE A GANTS |
*5 | SOUS-ENSEMBLE DE CACHE INFERIEUR DE TABLEAU DE BORD N° 2 |
- | - |

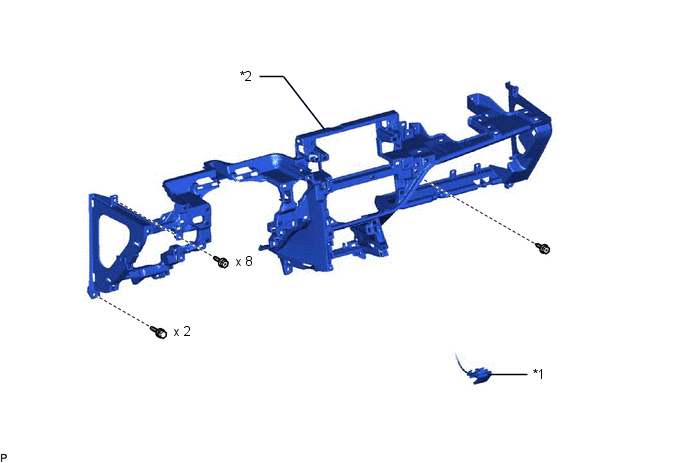

SCHEMA
*1 | SOUS-ENSEMBLE DE LEVIER DE COMMANDE DE VERROUILLAGE DE CAPOT |
*2 | SOUS-ENSEMBLE DE TABLEAU DE BORD INFERIEUR |
Mesures De Precaution
MESURES DE PRECAUTION 1. PRECAUTIONS A PRENDRE POUR LES VEHICULES EQUIPES D'AIRBAGS SRS ET DE PRETENSIONNEURS DE CEINTURE DE SECURITE (a) Certaines opérations décrites dans cette section peuvent ...
Depose
DEPOSE PROCEDURE 1. MESURES DE PRECAUTION Cliquer ici 2. DEPOSER L'ENSEMBLE SUPERIEUR DE TABLEAU DE BORD Cliquer ici 3. DEPOSER L'ENSEMBLE DE BOITIER DE CONSOLE Cliquer ici 4. DEPOSER L ...
