PIECES CONSTITUTIVES
SCHEMA

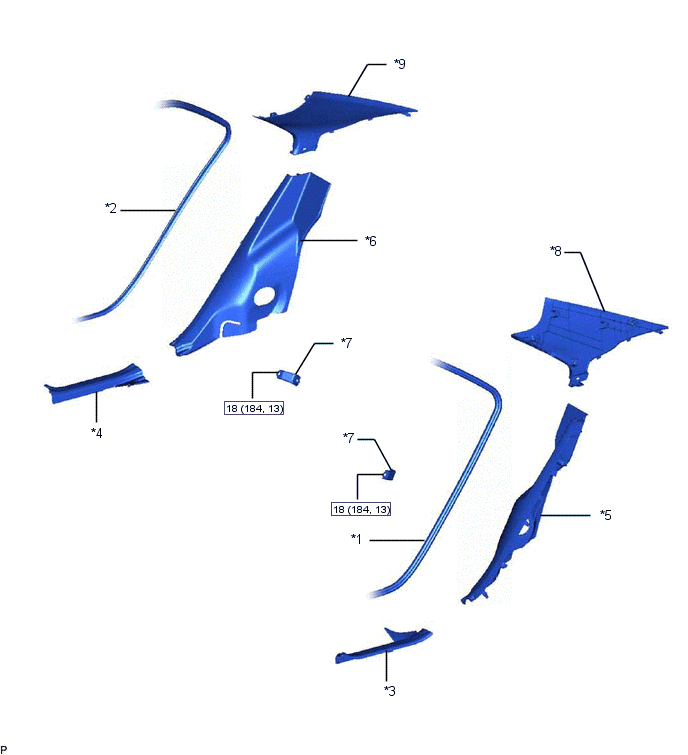

*1 | BOURRELET D'HABILLAGE D'OUVERTURE DE PORTE ARRIERE GAUCHE |
*2 | BOURRELET D'HABILLAGE D'OUVERTURE DE PORTE ARRIERE DROITE |
*3 | PLAQUE DE SEUIL DE PORTE ARRIERE GAUCHE |
*4 | PLAQUE DE SEUIL DE PORTE ARRIERE DROITE |
*5 | GARNISSAGE LATERAL GAUCHE DE SIEGE ARRIERE |
*6 | GARNISSAGE LATERAL DROIT DE SIEGE ARRIERE |
*7 | SOUS-ENSEMBLE DE CHARNIERE DE DOSSIER DE SIEGE ARRIERE |
*8 | ENSEMBLE DE GARNISSAGE DE TOIT INTERIEUR LATERAL GAUCHE |
*9 | ENSEMBLE DE GARNISSAGE INTERIEUR LATERAL DROIT DE PAVILLON |
- | - |
![]() |
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
- | - |
SCHEMA

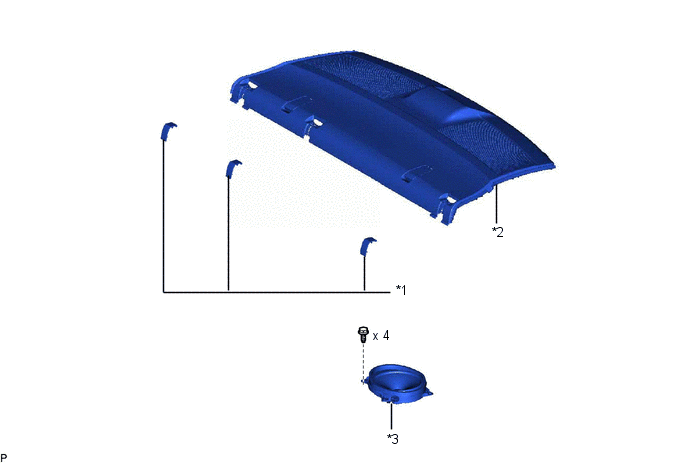

*1 | CACHE D'ORIFICE DE CEINTURE DE SECURITE D'HABILLAGE DE PLAGE ARRIERE |
*2 | ENSEMBLE DE PANNEAU D'HABILLAGE DE PLAGE ARRIERE |
*3 | ENSEMBLE DE HAUT-PARLEUR ARRIERE |
- | - |
Depose
DEPOSE PROCEDURE 1. DEPOSER L'ENSEMBLE DE SIEGE ARRIERE (avec appuie-tête non-escamotable) Cliquer ici 2. DEPOSER L'ENSEMBLE DE SIEGE ARRIERE (avec appuie-tête escamotable) Cliquer ici 3. ...
