PIECES CONSTITUTIVES

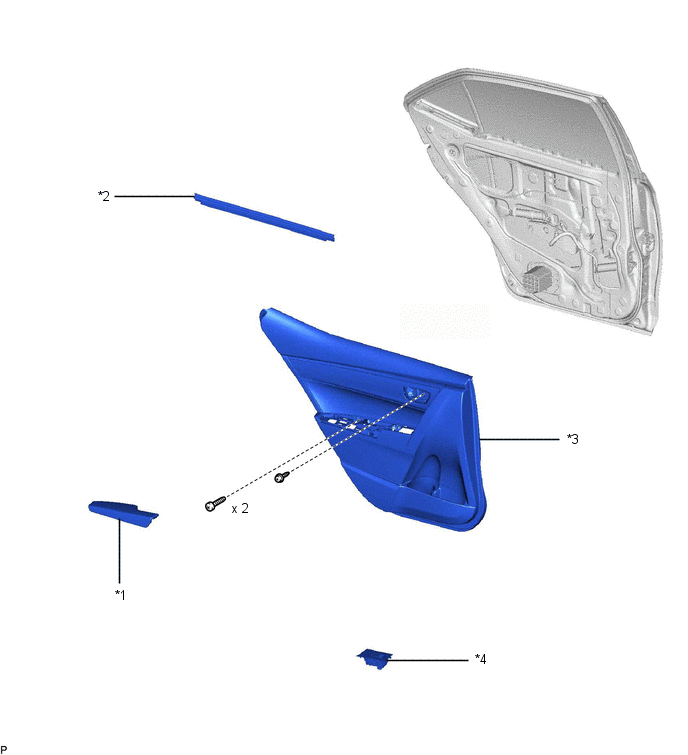

SCHEMA

*1 | ENSEMBLE D'ACCOUDOIR ARRIERE |
*2 | BOURRELET INTERIEUR DE VITRE DE PORTE ARRIERE |
*3 | SOUS-ENSEMBLE DE PANNEAU D'HABILLAGE DE PORTE ARRIERE |
*4 | ENSEMBLE DE CONTACTEUR DE LEVE-VITRE ELECTRIQUE ARRIERE AVEC PANNEAU DE BASE D'ACCOUDOIR DE PORTE ARRIERE |

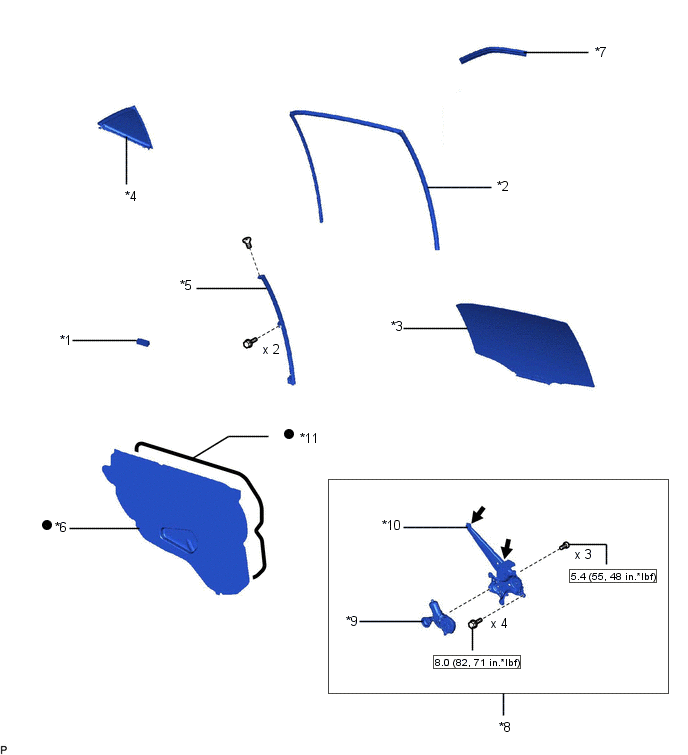

SCHEMA

*1 | JOINT DE VENTILATION DE PORTE ARRIERE N° 1 |
*2 | COULISSEAU DE VITRE DE PORTE ARRIERE |
*3 | SOUS-ENSEMBLE DE VITRE DE PORTE ARRIERE |
*4 | VITRE DE CUSTODE DE PORTE ARRIERE |
*5 | SOUS-ENSEMBLE D'ENCADREMENT ARRIERE INFERIEUR DE VITRE DE PORTE ARRIERE |
*6 | CACHE D'ORIFICE DE VISITE DE PORTE ARRIERE |
*7 | BOURRELET DE PORTE ARRIERE |
*8 | ENSEMBLE DE LEVE-VITRE DE PORTE ARRIERE |
*9 | ENSEMBLE DE MOTEUR DE LEVE-VITRE ELECTRIQUE ARRIERE |
*10 | SOUS-ENSEMBLE DE LEVE-VITRE DE PORTE ARRIERE |
*11 | RUBAN ADHESIF EN BUTYLE |
- | - |
![]() |
N*m (kgf*cm, lbf*pi): couple de serrage prescrit |
● | Pièce non réutilisable |
![]() |
Graisse MP | - |
- |
Depose
DEPOSE MESURE DE PRECAUTION / REMARQUE / CONSEIL CONSEIL: Utiliser la même procédure pour le côté droit que pour le côté gauche. La procédure décrite ci-dessous concerne le c ...
D'autres materiaux:
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 PLAQUETTE DE DESIGNATION DE MODELE DE PORTE DE COMPARTIMENT A BAGAGES N° 2
*2 PLAQUETTE DE DESIGNATION DE MODELE DE PORTE DE COMPARTIMENT A BAGAGES N° 4
*3 EMBLEME
- - ...
Signal de capteur d'oxygène (A/F) bloqué en position pauvre (banc 1 capteur 1) (P2195,P2196)
DESCRIPTION CONSEIL: Même si les intitulés des DTC se rapportent au capteur d'oxygène, ces DTC concernent le capteur de rapport air/carburant.
Le
capteur de rapport air/carburant génère une tension* qui correspond au
rapport air/carburant réel. La tension de ce capteur est utilisée pour ...
Coupure ou court-circuit dans le circuit du capteur de vitesse arrière droit (C1407,C1408)
DESCRIPTION Se reporter aux DTC C1415 et C1416.
Cliquer ici
N° de DTC Objet de la détection
Condition de détection du DTC
Organe incriminé
C1407 Coupure ou court-circuit dans le circuit du capteur de vitesse arrière droit
L'une des conditions suivantes est ...
