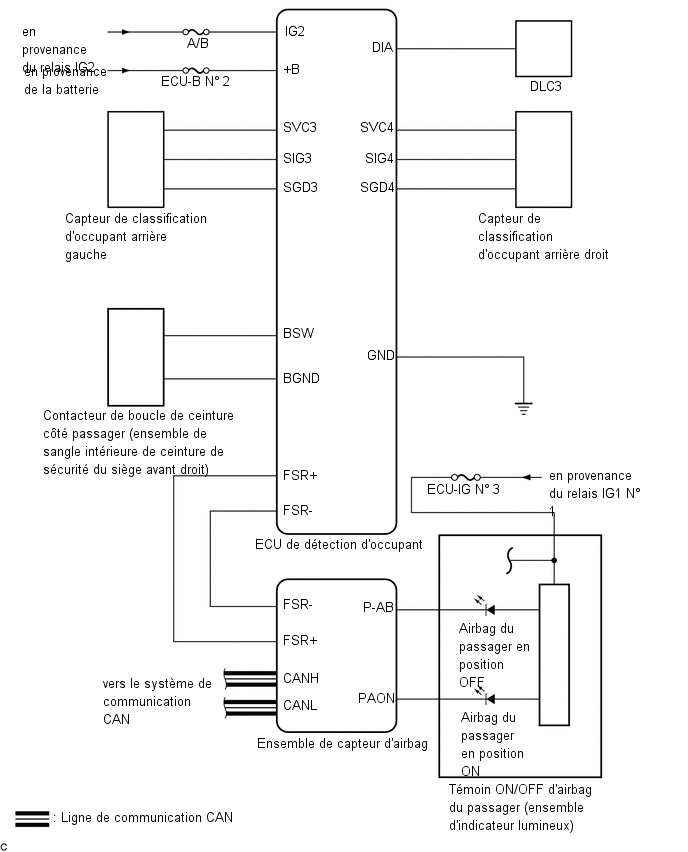

SCHEMA DU SYSTEME
Emplacement Des Pieces Constitutives
EMPLACEMENT DES PIECES CONSTITUTIVES SCHEMA *1 - TEMOIN ON/OFF D'AIRBAG DU PASSAGER ENSEMBLE D'INDICATEUR LUMINEUX *2 ENSEMBLE DE CAPTEUR D'AIRBAG *3 ECU DE DETECTION ...
Description Du Systeme
DESCRIPTION DU SYSTEME 1. GENERALITES (a) Dans le système de classification d'occupant, l'ECU de détection d'occupant calcule le poids de l'occupant en se basant sur des signaux émis par les ...
D'autres materiaux:
Repose
REPOSE PROCEDURE 1. REPOSER L'ENSEMBLE SUPERIEUR DE TABLEAU DE BORD
(a) Lors de l'installation d'un sous-ensemble de tableau de bord neuf:
(1)
Immédiatement avant de reposer l'ensemble supérieur de tableau de bord,
tordre et couper la partie comme indiqué sur le schéma.
(b)
Appuyer ...
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 VALVE DE PRESSION DES PNEUS ET EMETTEUR
*2 ENSEMBLE DE ROUE
*3 OEILLET
*4 RONDELLE
*5 ECROU
*6 OBUS DE VALVE
*7 CAPUCHON DE VALVE DE PNEU
*8 PNEU
*9 JANTE
- -
N*m ...
Pieces Constitutives
PIECES CONSTITUTIVES SCHEMA
*1 COUSSINET DE BUTEE DE CAPOT
*2 AGRAFE DE PROTECTION DE CAPOT
*3 JOINT ENTRE CAPOT ET SUPPORT DE RADIATEUR
*4 ENSEMBLE DE DURITE DE LAVE-GLACE
*5 SOUS-ENSEMBLE DE GICLEUR DE LAVE-GLACE
*6 AGRAFE DE JOINT EN ...
